Portable Air Ozonator

Portable air ozonators are ideal for odor control and disinfection. Portable air ozonators are widely used in hospitality industries, food processing industries, corporate offices, beverage industries, bakery, dairy, hospital and many more.

Features
• Commercial / Industrial grade
• Continuous mode/ One time / Continuous timer
• Plug and play
• Extension flexible tubing
• Light weight/ Portable
• Generated from ambient air
• Built in air pump

---

System specification
• Model No. : PAO/LC - 250/ 500
• Brand : Chemtronics® (Made in India)
• Make : CHEMOZONE TM
• Feed Gas : Ambient dry, dust & moisture free air
• Ozone Concentration : 90.0 - 120.0 mg/m3
• MOC of Ozone Cell : SS 316 / Ceramic
• Cell Cooling : Forced Air Cooled - Internally & Externally
• Heat Dissipation : Radiator Fins Design - Internal & External
• Discharge : Corona Discharge @ 0.3w/sq cm
• Power Amplifier : MOSFET
• Start : Soft start
• EHT : Ferrite Based Air cooled
• Dielectric : Precision Ceramic
• Enclosure - MOC : Carbon Steel
• Enclosure -Protection : IP - 54
• Enclosure -Finish : RAL-7035, structure powder coating
• Indicator : Power + Standby + Ozone ON
• Service Indicator : Non Resettable Hour meter
• Operating Temperature : 15 °C - 40 °C
• Mounting / Installation : Portable / Trolley mounted / Wall / Floor
• Line Voltage : 110/220 V ac; 50/60 Hz; I Phase
• Standard Accessories : Maine Cord - 3 meters, flexible anti oxidant tubing's - 3 meters
• Optional Accessories : Timer, SS 304 enclosure, ozone leakage sensor cum controller

* The above specifications are subjected to change without prior notice for Product/Performance enhancement
* Above specifications are at 20*C. For different working condition, there may be difference of 10% to 20% of ozone concentration

---

Model No.	PAO/LC - 250	PAO/LC - 500
Ozonator Output (mg/hr)	250	500
Feed Pressure (kpa)	0.17	0.17
Net Weight (Kg)	8	12
Power (W)	60	100

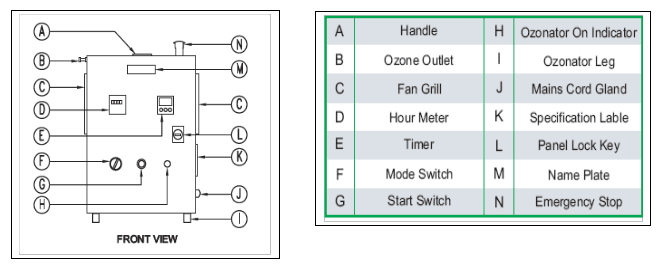

Model No.	PAO/LC - 250	PAO/LC - 500
A	300	400
B	250	300
D	150	210
E	35	35
F	25	25

Application
Air disinfection
Air Odor Control
VOC reduction
Reduce Sick Building Syndromes
Enhance Indoor Air Quality
Smoking lounges
Fire/Burning odor reduction
Sewage & Garbage odor reduction
OT & ICU disinfection
Air Fumigation
Clean room applications
Production, Packing & Storages
Cold rooms | Cold storages.

Application Industries
Bakery & Confectionaries
Dairy
Food Processing
Wineries
Horticulture
Process | Packing
Storage | Cold Storages
R & D Labs
Pharmaceutical
Medical & Health Care
Hotels | Resorts | Hospitality
Smoking Lounges
House Keeping | Tank Cleaning

Bar | Pubs | Restaurants | Clubs
Car & Bus coaches Cleaning
AHU Duct Cleaning & Disinfecting
Godown | Store Rooms
Clean Rooms
Corporate Offices
Schools | Collages
Shopping Malls
Theaters
Gym | Sports Clubs
Mosque | Temples | Churches
